Jun
29
2014

June updates to Magnum

IT

The Magnum C++11 and OpenGL/OpenGL ES/WebGL graphics engine gained experimental Android support, windowless applications on OS X and Windows, uses SDL2 as the default toolkit, adds new texture and mesh features, improves build system and got huge documentation review.

The June snapshot is available under snapshot-2014-06 tag in Corrade, Magnum, Magnum Plugins, Magnum Integration and Magnum Examples GitHub repositories. This article will describe the most important changes, for all the commits that went to master branches since the January snapshot (tagged snapshot-2014-01) see logs in Corrade, Magnum, Magnum Plugins and Magnum Integration, respectively.

For compatibility branch there is tag snapshot-2014-06-compatibility in Corrade, Magnum, Magnum Plugins and Magnum Examples repositories.

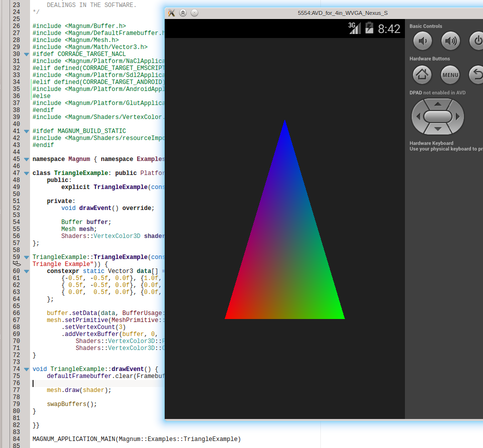

Experimental Android support

This snapshot contains experimental support for Android, see Corrade and Magnum building documentation. Initial platform support is in Platform::AndroidApplication.

Windowless applications on Mac OS X and Windows

Windowless applications are now supported on Windows and, thanks to joint effort by @amaranth and @ArEnSc, also on OS X. All command-line utilities such as magnum-info, magnum-distancefieldconverter and magnum-fontconverter are thus now available on all three major platforms.

Dropping GCC 4.6 support from master

Since GCC 4.7 is available even in LTS Ubuntu, it was time to drop support for 4.6 from master and providing it only in compatibility branch. Master branch now makes use of additonal C++11 features, such as template aliases, delegating constructors, user-defined literals etc., resulting in more maintainable code.

Using SDL2 as the default windowing toolkit

Since LTS Ubuntu now also has SDL2 in the repositories, it is now used in the documentation, tutorials and examples as the default windowing toolkit. The GLUT toolkit, which was used before, is still available in the library, but it's usage is not recommended and it probably won't receive new features anymore.

Installing debug and release libraries and plugins into separate locations

As explained in GitHub Issue #45, on some platforms it is not possible to mix debug and release libraries, as it leads to linker errors. Additionally it also wasn't possible to install both debug and release libraries into the same location, causing various inconveniences. Since this release, debug libraries are installed with -d suffix and debug plugins are installed into separate magnum-d/ directory. From end-user point of view not much has changed, CMake will automatically select proper libraries based on build type and also tries the best to select appropriate plugin directory. See documentation about plugins for more information about plugin directories on multi-configuration build systems.

Corrade

Dependency changes

  • Minimal required GCC version is now 4.7. Support for GCC 4.6 has been moved to compatibility branch.

New features

Changes

  • Libraries and plugins in debug build configuration are installed to different locations, making it possible to have debug and release libraries installed alongside each other
  • Compiler compatibility mode is now automatically detected by CMake to make the building easier
  • It's no longer needed to explicitly test validity of pointer returned from PluginManager::Manager::instance()
  • Improved error reporting in PluginManager library
  • Thorough documentation review, fixes and improvements

Bug fixes

  • Fixed corner case when Utility::Resource::getRaw() could unexpectedly return nullptr.

Deprecated APIs

No API was deprecated in this release.

Removed APIs

Magnum

Dependency changes

  • Minimal required GCC version is now 4.7. Support for GCC 4.6 has been moved to compatibility branch.

New features

Changes

Bug fixes

  • Fixed usage with OpenGL ES 3.1 contexts (it complained about invalid version)
  • Fixed compilation of Shaders::MeshVisualizer under WebGL and with ANGLE, see GitHub Issue #56
  • Fixed various build issues on Mac OS X, see GitHub Issues #51 and #54

Deprecated APIs

Removed APIs

  • All functionality deprecated in October snapshot has been removed, namely:
    • Removed deprecated raw-pointer versions of Buffer::setData() and Buffer:setSubData(), use overloads taking Containers::ArrayReference instead
    • Removed deprecated <Magnum/ImageFormat.h> header and ImageFormat/ImageType enums, use <Magnum/ColorFormat.h> header and ColorFormat/ColorType enums instead
    • Removed deprecated Matrix2 and Matrix2d typedefs, use Matrix2x2 and Matrix2x2d instead
    • Removed deprecated <Magnum/Swizzle.h> header and Magnum::swizzle() function, use <Magnum/Math/Swizzle.h> and Math::swizzle() instead
    • Removed deprecated *::maxSupported*() limit queries, use the less verbose *::max*() versions instead
    • Removed deprecated Platform::*Application::InputEvent::Modifier::*Button enum values, use Platform::*Application::*Event::buttons() function and Platform::*Application::*Event::Button enum instead
  • Platform::Sdl2Application::Configuration::Flag enum and related functions were replaced with WindowFlag, as the name would now conflict with context flags

Internal changes

  • Removed last remaining bits of global state, everything is now stored per-context.

Magnum Bootstrap

Changes

  • All windowed applications now use SDL2 by default. Minimal application using GLUT is available in new base-glut branch.
  • Adapted all bootstrap applications to Magnum improvements

Magnum Plugins

Dependency changes

  • Minimal required GCC version is now 4.7. Support for GCC 4.6 has been moved to compatibility branch.

Changes

  • Libraries and plugins in debug build configuration are installed to different locations, making it possible to have debug and release libraries installed alongside each other.

Magnum Integration

Dependency changes

  • Minimal required GCC version is now 4.7.

Changes

  • Libraries and plugins in debug build configuration are installed to different locations, making it possible to have debug and release libraries installed alongside each other.

Deprecated APIs

No API was deprecated in this release.

Removed APIs

No deprecated API was removed in this release.
